Cherry Hill.
H4
£99.99
Description

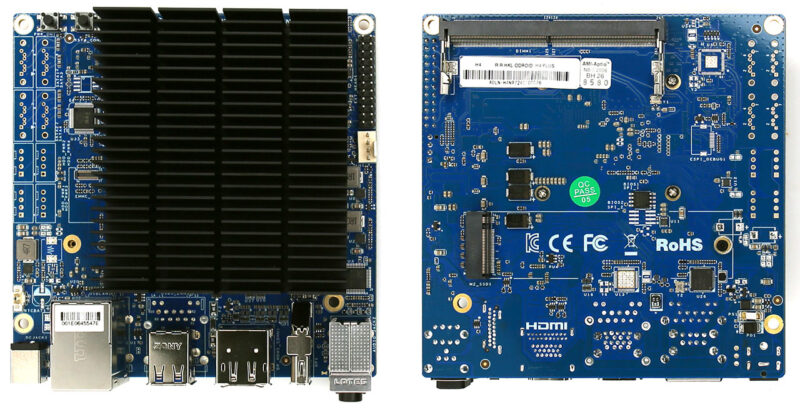

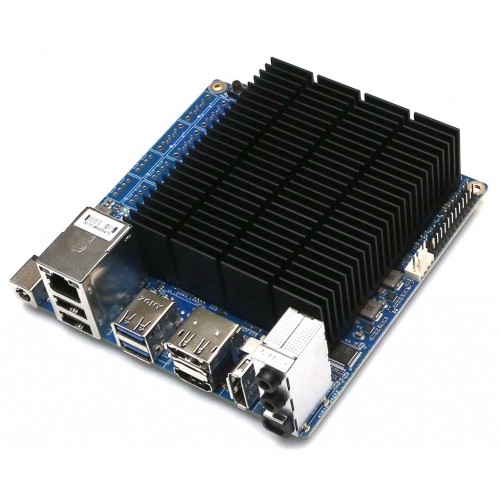

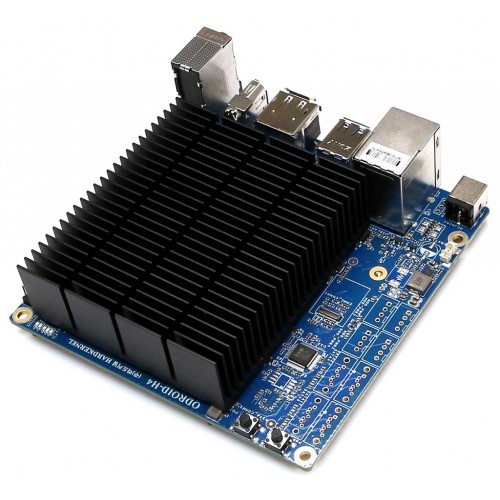

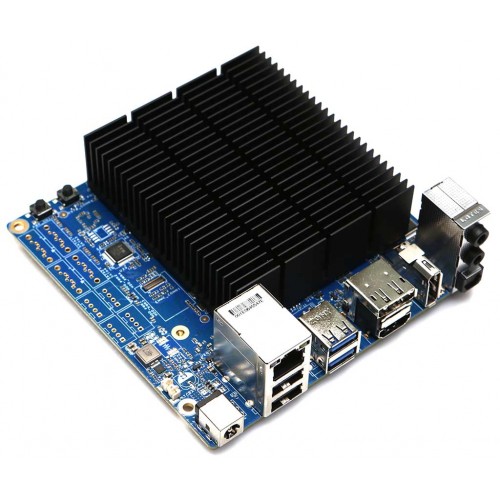

Welcome to the Odroid H4. Part of the 2024 iteration of the Odroid H-Series,
the Odroid H4 is designed for a lower power consumption overhead, making it ideal to use as a NAS server, or for any 24-hour functioning device.
Specifications-wise, the Odroid H4 has an Intel 4-Core N97 processor, accepts DDR5 SODIMM RAM (up to 48GB), and has options for Dual BIOS installations. It is also equipped with a second Ethernet port,
making it the best choice for users who need mass storage for high-performance NAS and/or use it for routing capabilities.
Top Line Feature Set Compared to the Odroid H3+:
- Faster CPU architecture – Alder Lake N vs. Jasper Lake. Plus AVX2 extensions.
- Faster DRAM interface DDR5 4800 MT/s vs. DDR4 2933 MT/s.
- Higher base and boost CPU frequencies and more powerful iGPU.
- An additional DisplayPort added allows the simultaneous use of up to 3 monitors.
- This lower cost ODROID H4 unit is perfect for straight computing and graphics applications (e.g digital signage, CIOT robots using ROS, factory automation…)
We also implemented little details following the ODROID-H3 feedback we received from all of our users.
Examples of this are:
1. The new cases designed for the H4 have been improved, so that a cooling fan can be mounted inside the case.
2. We have developed a Mini-ITX kit for seamless integration with standard generic ITX PC cases. Useful for fitting these into a compact office environment.
PERFORMANCE VIDEO:
SPECIFICATION:
| CPU (Intel) | Processor N97 |
| Code name | Alder Lake-N |
| Launch date | Q1’23 |
| Microarchitecture | Gracemont |
| Cores / Threads | 4C4T |
| Cache | 6 MB |
| AVX2 (Advanced Vector Extensions) | Yes |
| TDP | 12W |
| Single Thread Burst Frequency (GHz) | 3.6 |
| Memory | |
| Max. Memory address space (GB) | 48 |
| Max. Memory Speed (MT/s) | DDR5-4800 |
| iGPU (Intel UHD Graphics) | |
| Burst Frequency (MHz) | 1200 |
| Execution Units | 24 |
| Video outputs | |
| HDMI | 1 |
| DisplayPort | 2 |
| PCIe (via NVMe slot) | |
| Generation | Gen 3 |
| Lanes | 4 |
| Compatibility with optional | Yes |
| 4-ports 2.5GbE | |
| Net Card |
| IO ports | |
| USB 2.0 | 2 ports |
| USB 3.0 | 2 ports |
| 2.5GbE | 1 port |
| SATA III | No |
| 24pin IO Expansion ports | I2C x 2 |
| USB 2.0 x 3 | |
| UART x 1 | |
| HDMI-CEC x 1 | |
| Ext. Power Button x 1 | |
| Others | |
| Optional Cooling Fan | Slim 92-15 or thick 92-25 mm 12 Volt |
| standard PC 4-pin | |
| Slim fan fits inside the new cases. | |
| Dimensions | 120x120mm (4.7×4.7 in) |
| Recommended Power Supply 1 | 60W |
| Recommended Power Supply 2 | 133W |
| for supporting booting | |
| with 3.5″ hard disks | |
| Unlimited Performance Mode | Yes |
| Security (TPM 2.0) | Yes |
Additional information
| Weight | 0.450 kg |
|---|---|
| Dimensions | 16 × 17 × 5 cm |
| CPU |
Alder Lake N97 |
| Onboard Memory |
none |
| Power Input |
15-19V/4-7A DC |
| Video Output |
Display Port ,HDMI |
| Cooling System |
Active Cooling Fan is optional ,Passive Heatsink |
| CPU Clock Speed (GHz) |
Boost frequency of up to 3.6GHz |
| CPU Cores |
4 Cores 4 Threads |
| Connectivity Options |
2.5 GB Ethernet ,Display Port 1.4 ,HDMI 2.0 ,PCI Express ,SATA III ,USB 2.0 ,USB 3.0 |
| Memory Capacity |
Single Channel 48GB DDR5 |
| Operating System support |
Android ,Linux ,Windows |
| Regulatory Compliance Documents |
CE Certification ,FCC Certification ,KCC Certification ,RoHs Certification |
| Release Date |
Q1, 2023 |
Shipping & Delivery
1
2
3
Downloads
https://wiki.odroid.com/_media/odroid-h4/hardware/adln-h4_sch_2024-0306.pdf
https://wiki.odroid.com/_media/odroid-h4/hardware/kcc_odroid-h4u.pdf
https://wiki.odroid.com/_media/odroid-h4/hardware/ce_odroid-h4u.pdf
https://wiki.odroid.com/_media/odroid-h4/hardware/fcc_odroid-h4u.pdf
https://wiki.odroid.com/_media/odroid-h4/hardware/rohs_odroid-h4u.pdf
